Double Slider Tilt Window
|
|
Part#
|
Description
|
Visual
|
Usage
|
100.1190 (Small)
100.2000 (Large)
|
Screen Shim
|
|
2 used per window |
| 100.5052
|
Double Hung Frame Brown
|
|
| 100.5072
|
DHT/Slider Sash
|
|
| 100.5103 |
Interlock
Available in White, Natural & Canadian Oak |
|
| 100.5110 |
Glass Stop Lift
Available in White, Natural & Canadian Oak
|
|
| 100.5115
|
Glass Stop Lift-DHT 7/8"
Available in White, Natural & Canadian Oak
|
|
| 100.5120
|
Glass Stop
Available in White, Natural & Canadian Oak
|
|
| 100.5125
|
Glass Stop-DHT 7/8"
Available in White, Natural & Canadian Oak
|
|
| 100.5145
|
Head Jamb Cover
Available in White, Natural & Canadian Oak
|
|
| 100.5160
|
Flat Pocket Cover
Available in White, Natural & Canadian Oak
|
|
| 100.5170
|
Balance Cover
Available in White, Natural & Canadian Oak
|
|
100.5350 (35.5")
100.5352 (41.5")
100.5354 (47.5")
100.5356 (53.5")
100.5358 (59.5")
100.5359 (65.5")
|
Sash Reinforcement Bar
|
 |
(35.5") used in FH >=42"<48"
(41.5") used in FH>=48"<54"
(47.5") used in FH>=54"<60"
(53.5") used in FH>=60"<66"
(59.5") used in FH>=66"<72"
(65.5") used in FH>=72"
|
| 525.1031
|
Shoe Housing
|
|
4 used per window |
| 525.1032
|
Shoe Knob
|
|
4 used per window |
| 525.1033
|
Instalock Pivot Bar
|
|
4 used per window |
| 525.1050
|
Lock-DHT
|
|
1 used in FW <=26-3/16"
2 used in FW >=26-1/4"
|
| 525.1070
|
Keeper-Double Hung Tilt
Available in White & Copper
|
|
1 used in FW <=26-3/16"
2 used in FW >=26-1/4"
|
| 525.1130
|
Spring - Tilt Latch
|
|
4 used per window
|
| 525.1151
|
Weep Hole Covers
Available in numerous colors
|
|
2 used per window |
| 525.1220
|
Glide Shoe
|
|
4 used per window
|
| 525.1230
|
Tilt Latch Retainer
|
|
4 used per window |
525.1240 (Left)
525.1250 (Right)
|
Tilt Latch Finger
|
|
2 used for the left side
2 used for the right side |
| 525.1260
|
Tilt Latch Thumb Plate
Available in White & Copper
|
|
4 used per window
|
| 525.1270
|
Tilt Latch Cover Plate
|
|
2 used per window
|
| 525.1340
|
Slim Pro-Latch Mechanism
|
|
|
| 525.1350
|
Cover Assembly
Available in White & Coppertone
|
|
|
| 525.1360
|
Surface Fix Strike
Available in White & Coppertone
|
|
|
| 575.1010
|
Weatherstrip-pile .29
|
|
4 used per window |
| 575.1015
|
Weatherstrip-pile .25
|
|
2 used for the right sash
1 used for the left sash |
| 575.1085 |
Q-Lon Fin Seal 190x200 |
 |
| 575.1105
|
Dust Plug .440"W
|
|

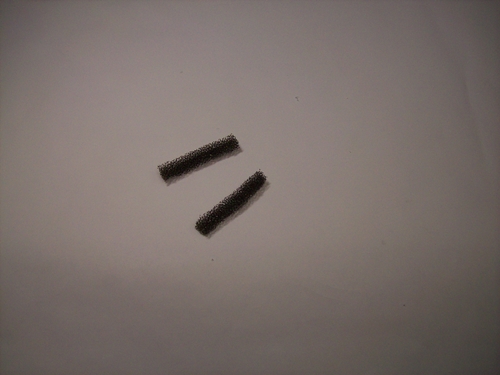

575.1110
575.1115
|
Reticulated Foam 3/8"
Reticulated Foam 3/4"
|
|
(3/8")2 used per window
(3/4") 1 used per window
Used for Sill Drainage |
| 575.1160
|
Setting Block 7/8"
|
|
12 used in units of Sash<=23-3/16"
26 used in units of Sash>=23-1/4"
|
| 940.1007
|
Label-a-peel Northstar Logo
|
|
| *F.W. --> Frame Width
|
*F.H. --> Frame Height |
|
