Single Hung Tilt Window     Parts in Action

Part#


Description


Visual


Usage

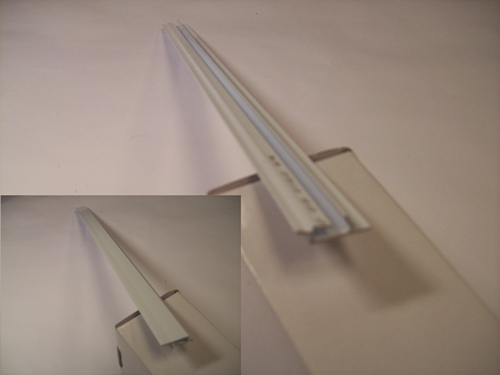

100.1185 Dom.Screen Retainer 100.5062 Single Hung Frame 100.5093 SHT Contour Mullion
Available in multiple colors 100.5103 Interlock
Available in White & Oak 100.5110 Glass Stop Lift
Available in White & Oak 100.5115 Glass Stop Lift-DHT 7/8"
Available in White & Oak 100.5120 Glass Stop
Available in White & Oak 100.5125 Glass Stop-DHT 7/8"
Available in White & Oak 100.5145 Head Jamb Cover 100.5160 Flat Pocket Cover
Available in White & Oak 100.5170 Balance Cover
Available in White & Oak 100.5350(35&1/2")
100.5352 (41&1/2") Sash Reinforcement Bar
1 used in FW >=42"<48"
1 used in FW >=48"<54" 100.5360(37")
100.5362 (43") Mullion Reinforcement Bar
1 used in FW >=42"<48"
1 used in FW >=48"<54" 525.1000 Shoe Housing 2 used per window 525.1010 Shoe Knob 2 used per window 525.1020 Metal Hook 2 used per window 525.1040 Pivot Bar S.S. 3-Hole 2 used per window 525.1070 Keeper-Double Hung Tilt
Available in White & Copper 2 used per window 525.1130 Spring - Tilt Latch 2 used per window 525.1151 Weep Hole Covers

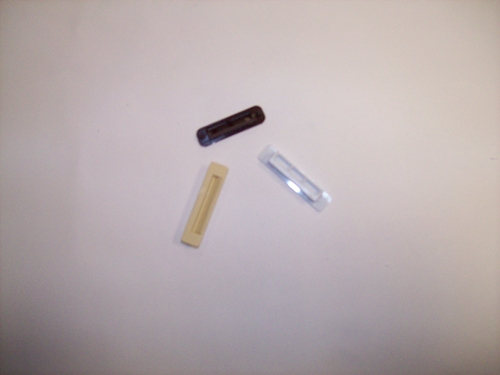

Available in numerous colors 2 used per window 525.1155 Weep Hole Covers S/H
Available in numeours colors 2 used per window 525.1230 Tilt Latch Retainer 2 used per window 525.1240 (Left)
525.1250 (Right) Tilt Latch Finger 1 used for the left side
1 used for the right side 525.1260 Tilt Latch Thumb Plate
Available in White & Copper 525.1270 Tilt Latch Cover Plate 530.10 Balance
2 used per window 575.1010 (Pile .29)
575.1015 (Pile .25)
575.1020 (Pile .18) Weatherstrip (.29) 2 used in bottom rail
(.29) 4 used in stiles
(.25) 2 used in stiles
(.18) 2 used in Mullion & Interlock
(.18) 1 used in bottom rail
(.18) 1 used in sill cover 575.1160 Setting Block 7/8" 15 used in units with sash <=23-3/16"
26 used in units with sash >=23-1/4" 940.1007 Label-a-peel Northstar Logo *F.W. --> Frame Width *F.H. --> Frame Height
