Double Hung Tilt Window     Parts in Action

Part#

Description

Visual

Usage
100.5072 DHT/Slider Sash
100.5103 Interlock
Available in White & Oak
100.5110 Glass Stop Lift
Available in White & Oak
100.5115 Glass Stop Lift-DHT 7/8"
Available in White & Oak
100.5120 Glass Stop
Available in White & Oak
100.5125 Glass Stop-DHT 7/8"
Available in White & Oak
100.5145 Head Jamb Cover
100.5160 Flat Pocket Cover
Available in White & Oak

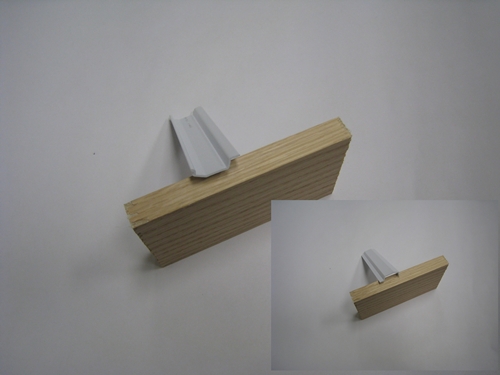

100.5170 Balance Cover
Available in White & Oak
100.5350 (35.5")
100.5352 (41.5")		 Reinforcement (35.5") 2 used in FW>=42"<48"
(41.5") 2 used in FW>=48"<54"

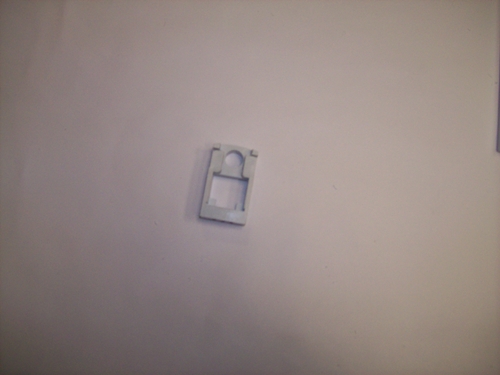

525.1000 Shoe Housing 4 used per window

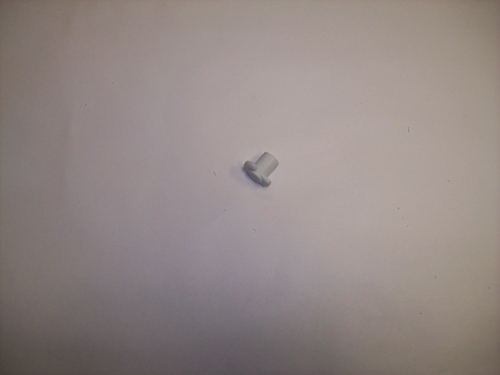

525.1010 Shoe Knob 4 used per window

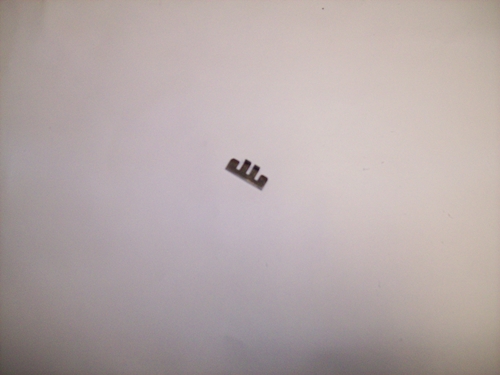

525.1020 Metal Hook 4 used per window

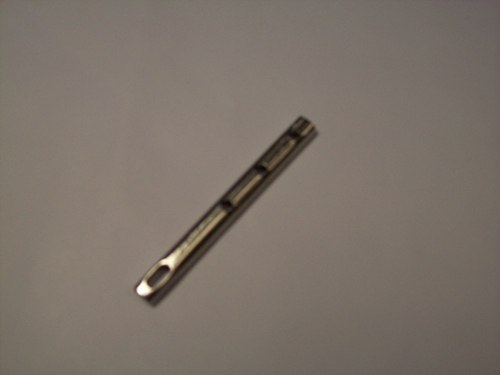

525.1040 Pivot Bar S.S. 3-Hole 4 used per window
525.1050 Lock-DHT 1 used in FW <=26-3/16"
2 used in FW >=26-1/4"
525.1070 Keeper-Double Hung Tilt
Available in White & Copper 		1 used in FW <=26-3/16"
2 used in FW >=26-1/4"
525.1130 Spring - Tilt Latch 4 used per window
525.1151 Weep Hole Covers
Available in numerous colors 		2 used per window
525.1230 Tilt Latch Retainer 4 used per window
525.1240 (Left)
525.1250 (Right) 		Tilt Latch Finger 2 used for the left side
2 used for the right side
525.1260 Tilt Latch Thumb Plate
Available in White & Copper 		4 used per window
525.1270 Tilt Latch Cover Plate 2 used per window

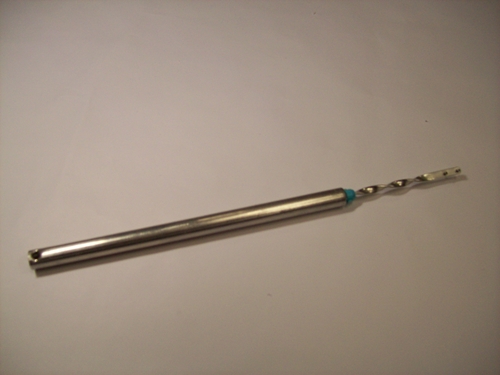

530.10 Balance
Available in multiple sizes 		2 used for the top
2 used for the bottom
575.1010 (Pile .29)
575.1015 (Pile .25)
575.1020 (Pile .18) 		Weatherstrip (.29) 2 used in bottom rail
(.29) 4 used in stiles
(.25) 2 used in stiles
(.18) 2 used in Mullion & Interlock
(.18) 1 used in bottom rail
(.18) 1 used in sill cover
575.1160 Setting Block 7/8" 14 used in units of Sash<=23-3/16"
26 used in units of Sash >=23-1/4"
940.1007 Label-a-peel Northstar Logo
*F.W. --> Frame Width *F.H. --> Frame Height
