Awning Window     Parts in Action

Part#

Description

Visual

Usage
100.5021 Casement Frame
100.5032 Casement Sash
100.5045 Contour Glass Stop
100.5420 (42")
100.5410 (48")
100.5420 (54")		 Reinforcement 42" used in F.W.>=48" <54"
48" used in F.W. >=54" <60"
54" used in F.W. >=60"
525.2141 (R.Hand)
525.2146 (L.Hand)		 Sash Hinge Track
(Adjustable)		 1 used for the R.Hand
1 used for the L.Hand
525.2142 (R.Hand)
525.2147 (L.Hand)		 Sash Hinge Arm
(Adjustable)		 1 used for the R.Hand
1 used for the L.Hand
525.2155 (L.Hand)
 Folding Handle Cover 1 used per window
525.2201 (L.Hand)
525.2211 (R.Hand)		 Awning Hinge 18" Track 1 used for the R.Hand
1 used for the L.Hand
525.2202 (L.Hand)
525.2212 (R.Hand)		 Awning Hinge 18" Arm 1 used for the R.Hand
1 used for the L.Hand
525.2214 (L.Hand)
525.2218 (R.Hand)		 Awning Hinge 26" Arm 1 used for the R.Hand
1 used for the L.Hand
525.2217 (R.Hand)
525.2214 (L.Hand)		 Awning Hinge 26" Track 1 used for the R.Hand
1 used for the L.Hand
525.2590 Maxim Awning Operator 1 used per window

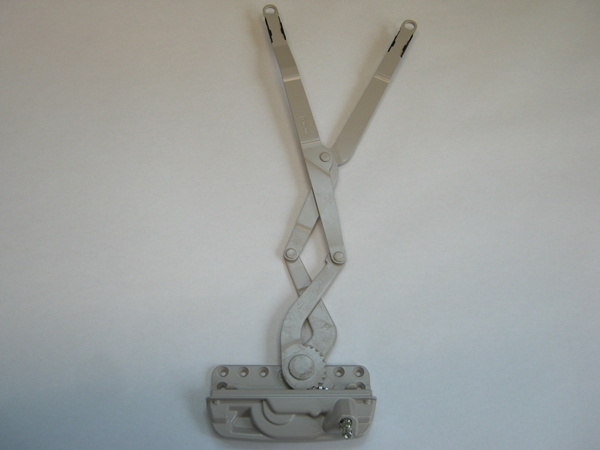

525.2591 Encore Awning Operator 1 used per window

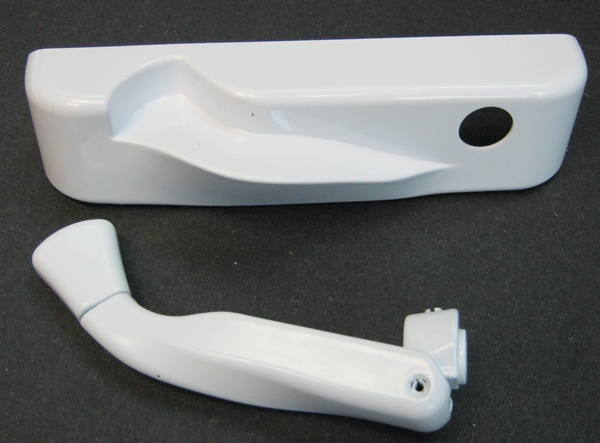

525.2601 (L. Hand) Encore Tango Handle/Cover 1 used per window
525.2620 Maxim Track/Pivot Slider 1 used per window
525.2680 Awning Lock & Screws
Available in White & Oak		 2 used per window
525.2690 Awning Keeper 2 used per window
575.1070 Santoprene Bulb Seal
575.1170 Setting Block 4 used in F.W. <=36"
6 used in F.W.>36"
940.1007 Label-a-peel Northstar Logo
*F.W. --> Frame Width *F.H. --> Frame Height
