Single Slider Liftout Window Descriptions Parts in Action
|
|||
|
Part# |
Description |
Visual |
Usage |

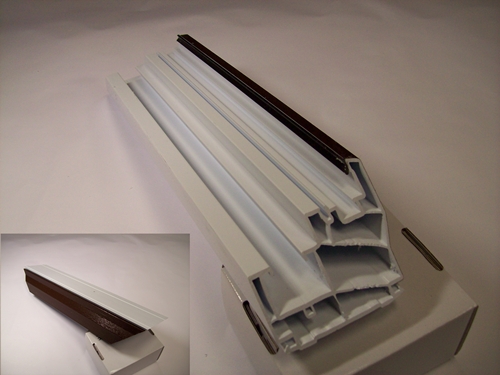

| 100.5062 | Single Hung Frame |
|
|

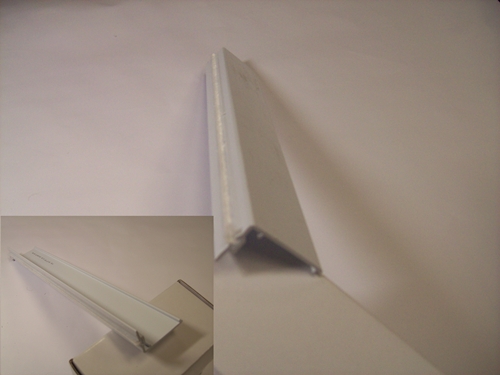

| 100.5103 | Interlock Available in White & Oak |
|
|

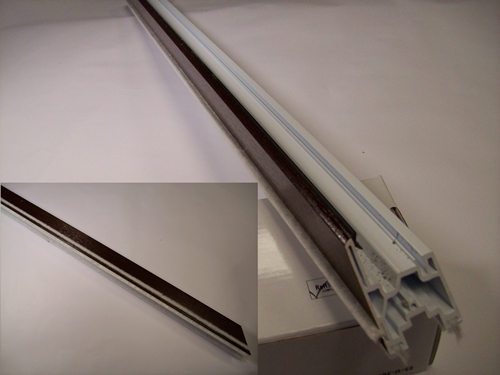

| 100.5072 | DHT/Slider Sash |
|
|

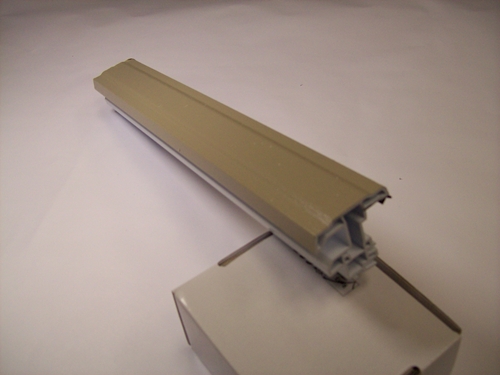

| 100.5093 | SHT Contour Mullion Available in multiple colors |
|
|

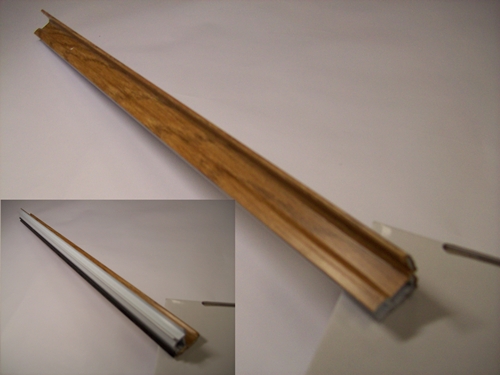

| 100.5110 | Glass Stop Lift Available in White & Oak |
|
|

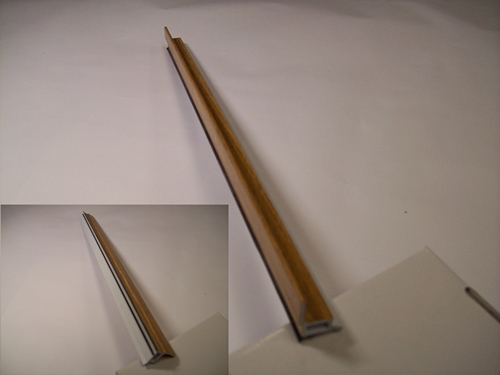

| 100.5115 | Glass Stop Lift-DHT 7/8" Available in White & Oak |
|
|

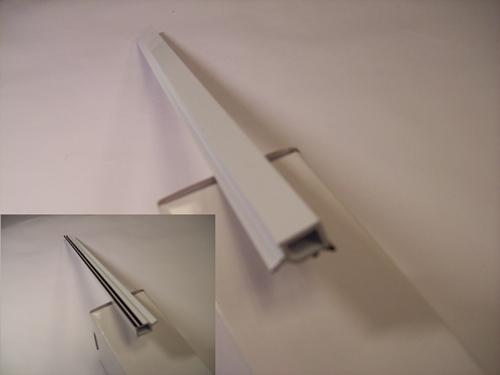

| 100.5120 | Glass Stop Available in White & Oak |
|
|

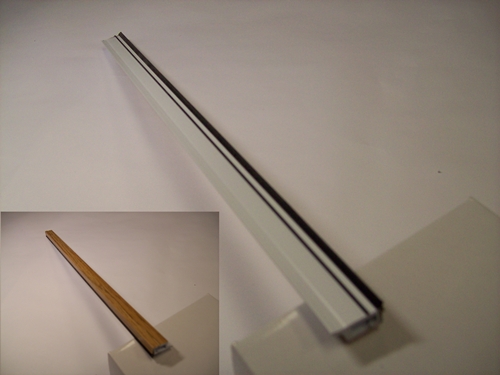

| 100.5125 | Glass Stop-DHT 7/8" Available in White & Oak |
|
|

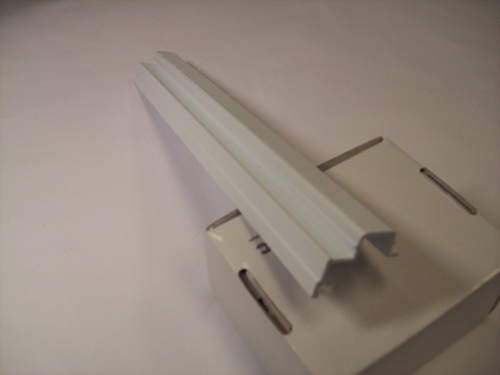

| 100.5145 | Head Jamb Cover |
|
|

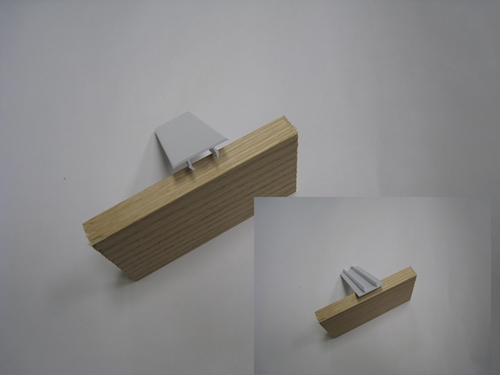

| 100.5160 | Flat Pocket Cover Available in White & Oak |
|
|
| 100.5350 (35.5") 100.5352 (41.5") 100.5354 (47.5") 100.5356 (53.5") 100.5358 (59.5") 100.5359 (65.5") |
Sash Reinforcement Bar |
 |
(35.5") used in FH >=42"<48" (41.5") used in FH>=48"<54" (47.5") used in FH>=54"<60" (53.5") used in FH>=60"<66" (59.5") used in FH>=66"<72" (65.5") used in FH>=72" |

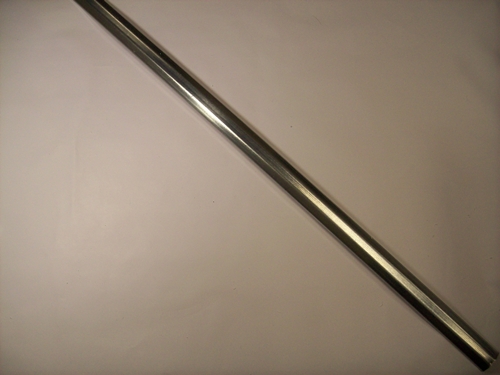

| 100.5360 (37") 100.5362 (43") 100.5364 (49") 100.5366 (55") 100.5368 (61") 100.5369 (67") |
Mullion Reinforcement Bar |
 |
(37") used in FH >=42"<48" (43") used in FH>=48"<54" (49") used in FH>=54"<60" (55") used in FH>=60"<66" (61") used in FH>=66"<72" (67") used in FH>=72" |

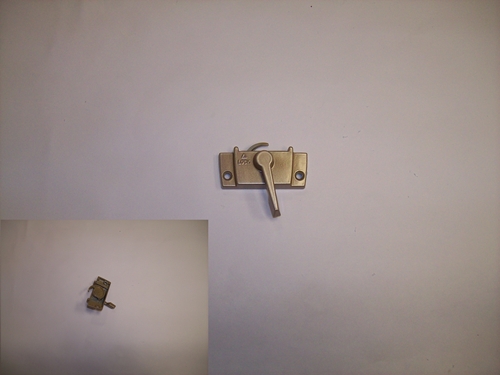

| 525.1050 | Lock-DHT |
|
1 used in FW <=26-3/16" 2 used in FW >=26-1/4" |

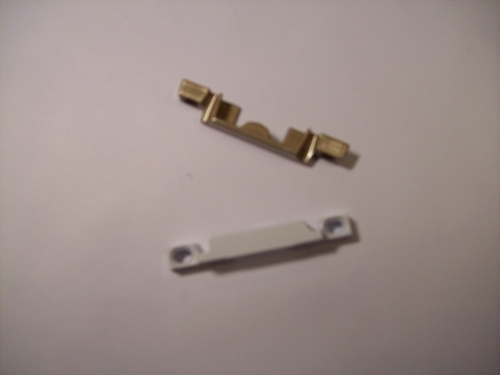

| 525.1070 | Keeper-Double Hung Tilt Available in White & Copper |
|
1 used in FW <=26-3/16" 2 used in FW >=26-1/4" |
| 525.1130 | Spring - Tilt Latch |
|
2 used per window |

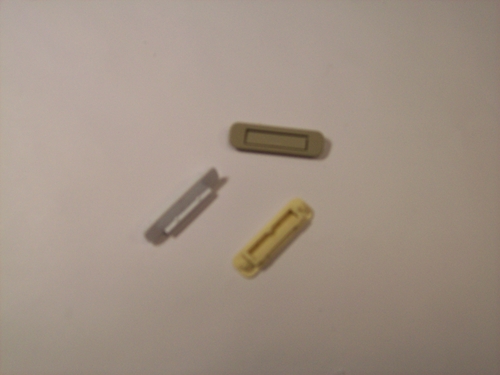

| 525.1151 | Weep Hole Covers Available in numerous colors |
|
2 used per window |

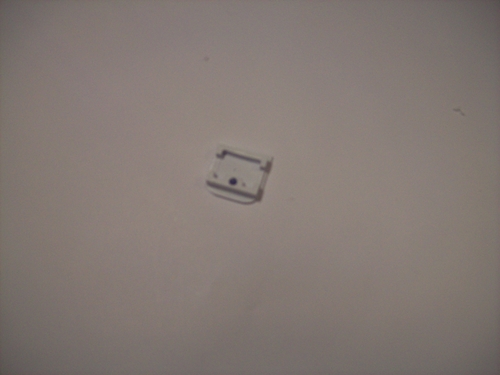

| 525.1220 | Glide Shoe |
|
2 used per window |

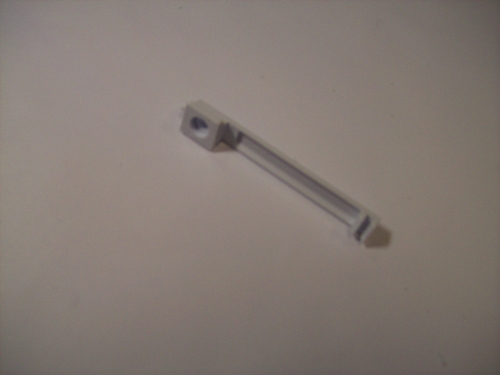

| 525.1230 | Tilt Latch Retainer |
|
2 used per window |

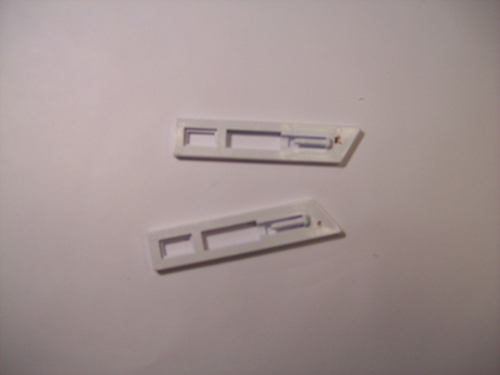

| 525.1240 (Left) 525.1250 (Right) |
Tilt Latch Finger |
|
1 used for the left side 1 used for the right side |

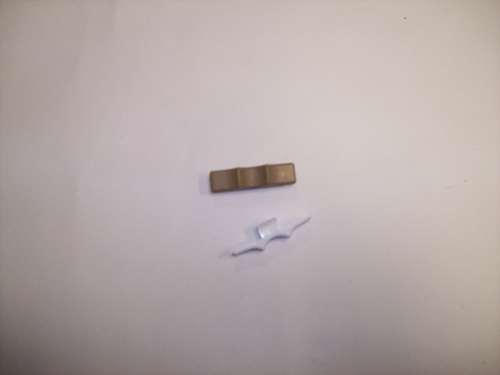

| 525.1260 | Tilt Latch Thumb Plate Available in White & Copper |
|
2 used per window |

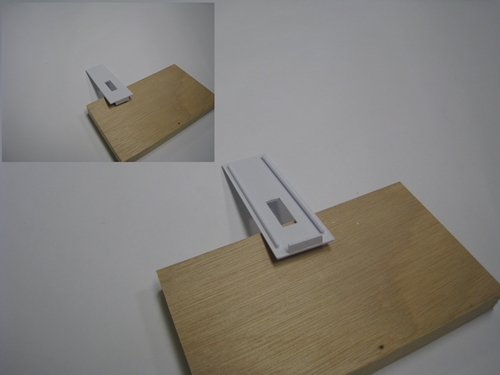

| 525.1270 | Tilt Latch Cover Plate |
|
2 used per window |

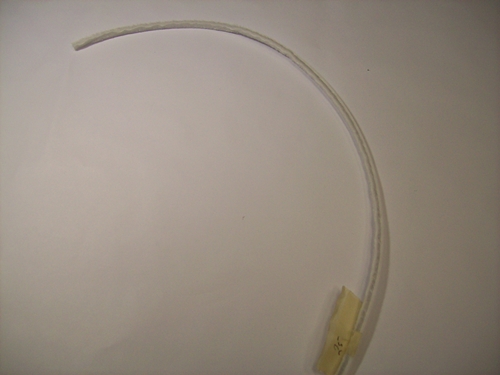

| 575.1010 (Pile .29) 575.1020 (Pile .18) |
Weatherstrip |
|
(.29)4 used on the Sash Top&Bottom rails (.18)2 used on the Sash Top&Bottom rails (.18)1 used on the Sill Cover (.18)1 used on the Jamb Cover (.18)2 used on the Interlock (.18)1 used on the Pull Stile |

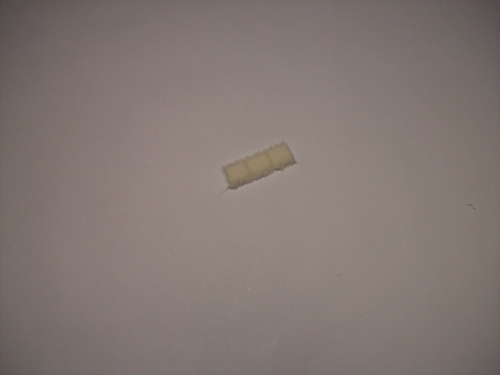

| 575.1105 | Dust Plug .440"W |
|
|

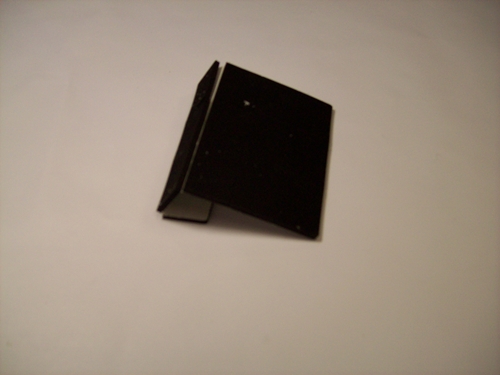

| 575.1160 | Setting Block 7/8" |
|
14 used in units of Sash<=23-3/16" 26 used in units of Sash>=23-1/4" |

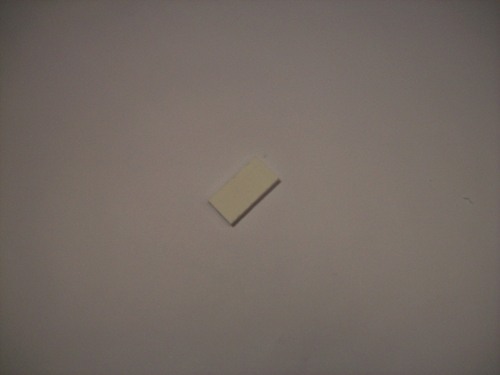

| 645.5450 | NS Sintra PVC Board |
|
|

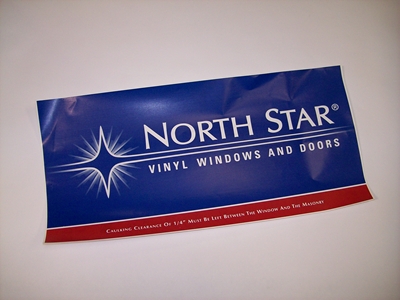

| 940.1007 | Label-a-peel Northstar Logo |
|
|
