Double Slider Liftout Window   Descriptions     Parts in Action

Part#

Description

Visual

Usage

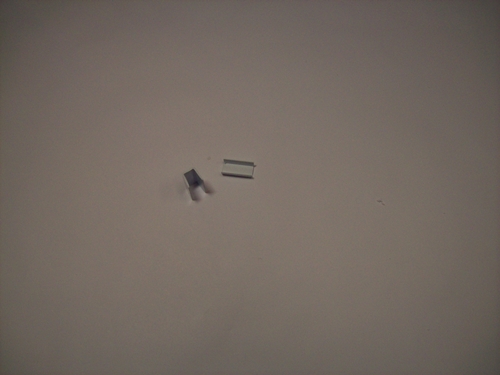

100.1190 (Small)
100.2000 (Large) 		Screen Shim 2 used if FW<48"
3 used if FW>=48"

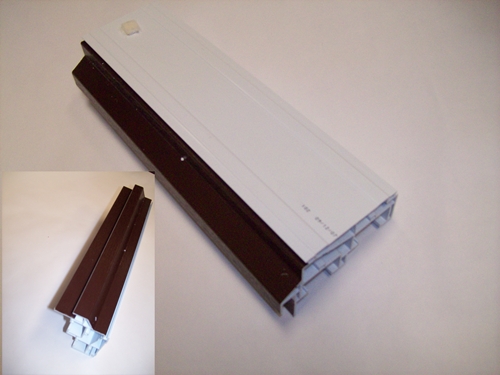

100.5052 Double Hung Frame Brown
100.5103 Interlock
Available in White & Oak
100.5072 DHT/Slider Sash
100.5110 Glass Stop Lift
Available in White & Oak
100.5115 Glass Stop Lift-DHT 7/8"
Available in White & Oak
100.5120 Glass Stop
Available in White & Oak
100.5125 Glass Stop-DHT 7/8"
Available in White & Oak

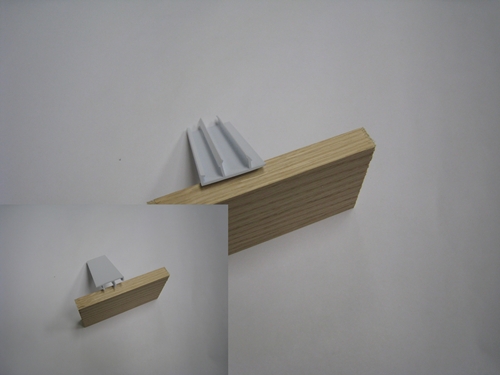

100.5130 Sloped Still Cover
100.5145 Head Jamb Cover
100.5160 Flat Pocket Cover
Available in White & Oak
100.5350 (35.5")
100.5352 (41.5")
100.5354 (47.5")
100.5356 (53.5")
100.5358 (59.5")
100.5359 (65.5") 		Reinforcement (35.5") 2 used in FH>=42"<48"
(41.5") 2 used in FH>=48"<54"
(47.5") 2 used in FH>=54"<60"
(53.5") 2 used in FH>=60"<66"
(59.5") 2 used in FH>=66"<72"
(65.5") 2 used in FH>=72"
525.1050 Lock-DHT 1 used in FW <=26-3/16"
2 used in FW >=26-1/4"
525.1070 Keeper-Double Hung Tilt
Available in White & Copper 		1 used in FW <=26-3/16"
2 used in FW >=26-1/4"
525.1130 Spring - Tilt Latch 4 used per window
525.1151 Weep Hole Covers
Available in numerous colors 		2 used per window
525.1220 Glide Shoe 4 used per window
525.1230 Tilt Latch Retainer 4 used per window
525.1240 (Left)
525.1250 (Right) 		Tilt Latch Finger 2 used for the left side
2 used for the right side
525.1260 Tilt Latch Thumb Plate
Available in White & Copper 		4 used per window
525.1270 Tilt Latch Cover Plate 2 used per window
575.1000 (Pile .32)
575.1010 (Pile .29)
100.1015 (Pile .25)
575.1020 (Pile .18) 		Weatherstrip (.32) 1 used Sash-Below Interlock
(.29) 4 used in Sash-Top&Bottom Rails
(.25) 2 used in Sash-Top&Bottom Rails
(.25) 1 used in Sash-Pull Stile
(.18) 1 used in Jamb Cover & Interlocks
575.1105 Dust Plug .440"W 1 used per window
575.1160 Setting Block 7/8" 14 used in units of Sash<=23-3/16"
26 used in units of Sash>=23-1/4"
645.5450 NS Sintra PVC Board
940.1007 Label-a-peel Northstar Logo
