Casement Window Descriptions Parts in Action
|
|||
|
Part# |
Description |
Visual |
Usage |

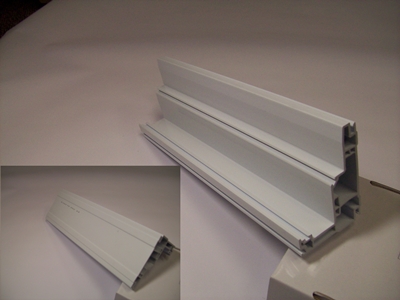

| 100.5021 | Casement Frame |  |
|

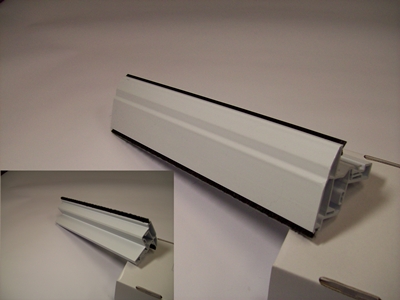

| 100.5032 | Casement Sash |  |
|

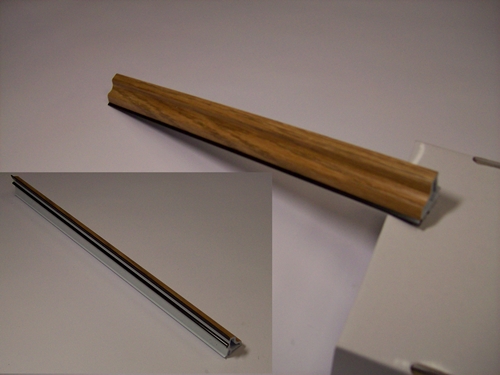

| 100.5045 | Contour Glass Stop |  |
|

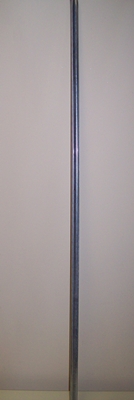

| 100.5410 (48") 100.5420 (54") 100.5430 (60") 100.5440 (66") |
Reinforcement |
 |
(48") used in F.H.>=54"<60" (54") used in F.H. >=60"<66" (60") used in F.H. >=66"<72" (66") used in F.H. >=72"<=78" |
| 300.1020 | Screen Coil Available in White & Oak |
 |
|

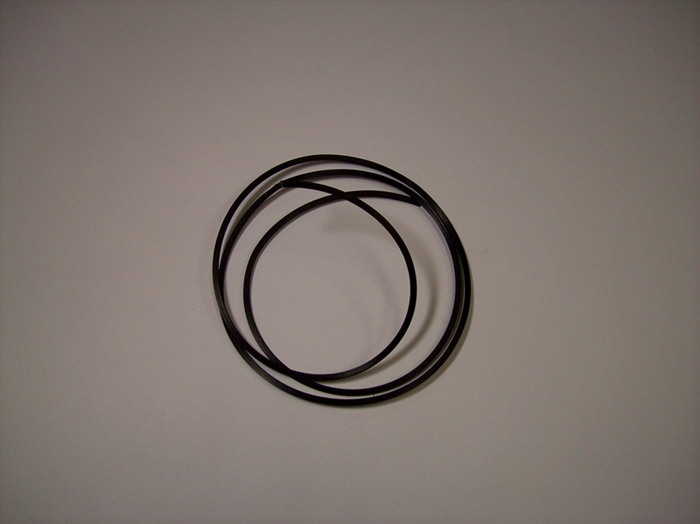

| 300.1085 | Black Round Spline |  |
|

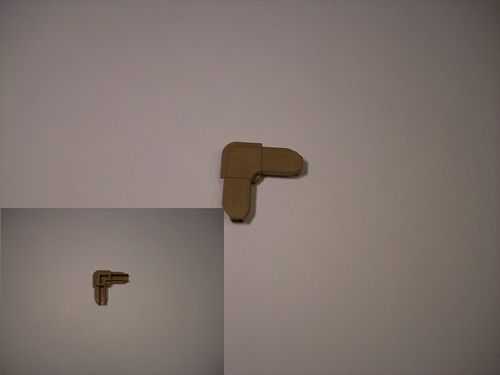

| 300.1165 (T.L) 300.1166 (T.R) |
Casement Screen Corners (Available in Oak & White) |
 |
2 used per window |

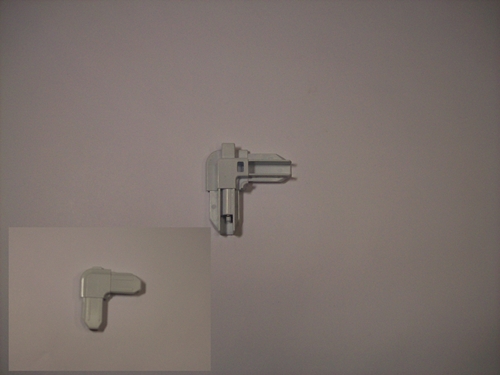

| 300.1167 (B.L) 300.1168 (B.R.) |
Casement Screen Corners (Available in Oak & White) |
 |
2 used per window |

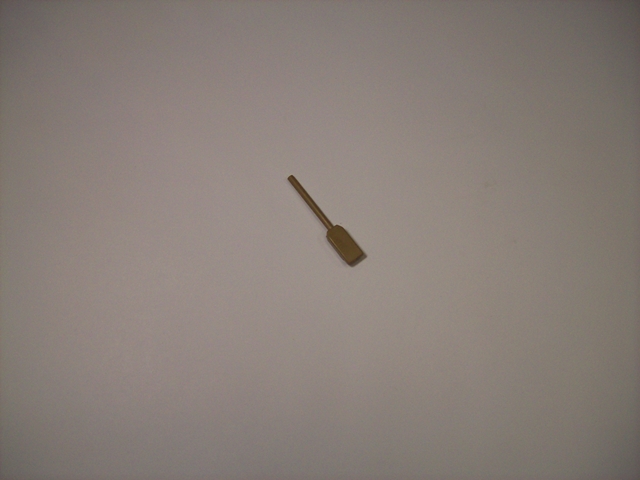

| 300.1169 | Screen Plunger Available in White & Oak |
 |
|

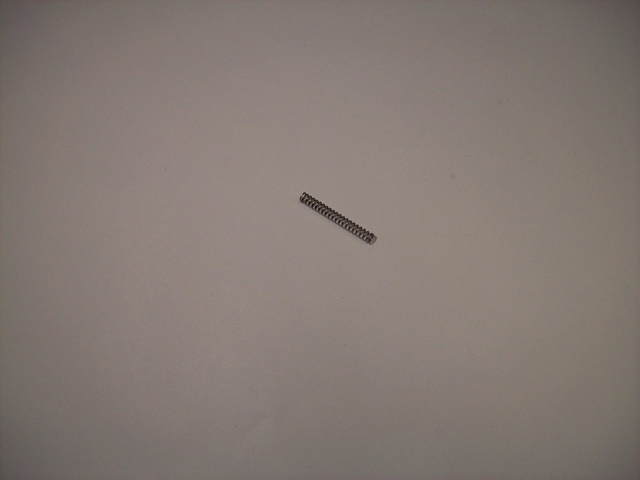

| 525.1130 | Spring - Tilt Latch |  |
|

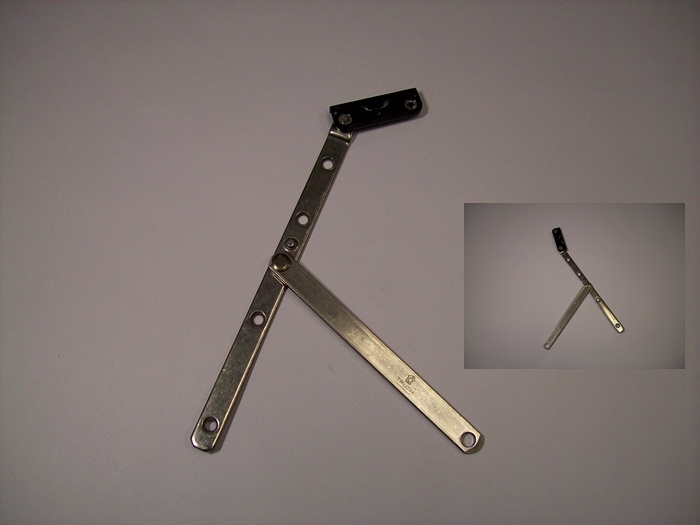

| 525.2142 (R.Hand) 525.2147 (L.Hand) |
Sash Hinge Arm Adjustable |  |
1 used for the right hand 1 used for the left hand |

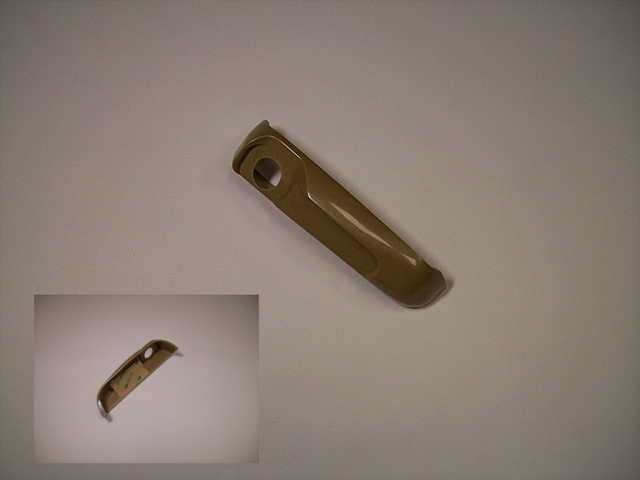

| 525.2155 | Left Hand Folding Handle Cover |
 |
If FW>=24" use L.Hand cover If FW<24" use R.Hand cover |

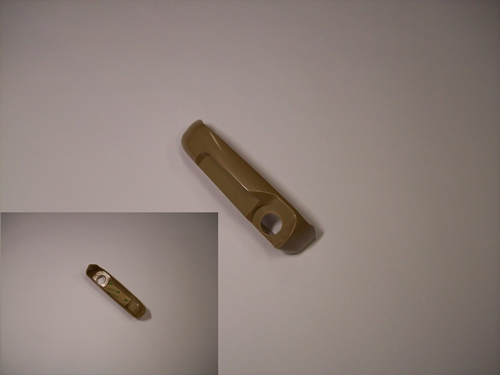

| 525.2165 | Right Hand Folding Handle Cover |
 |
If FW>=24" used R.Hand cover If FW <24" used L.Hand cover |
| 525.2550 (L.Hinge) 525.2560 (R.Hinge) |
Maxim Dual-arm Operator Available in White & Copper |
 |
1 used in F.W. >=24" |

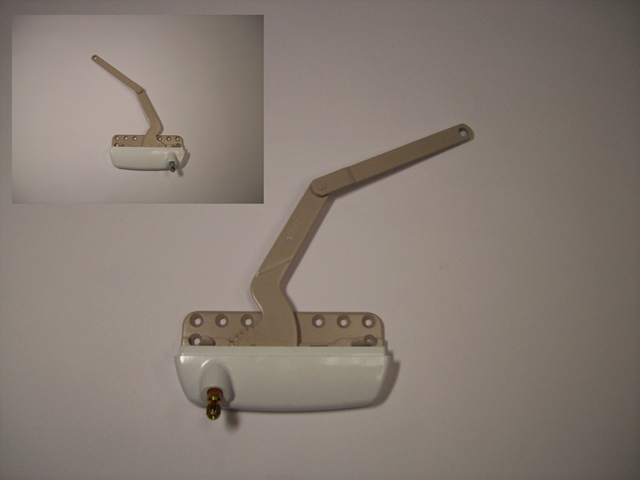

| 525.2570 (L.Hinge) 525.2580 (R.Hinge) |
Maxim Dyad Operator Available in White & Copper |
 |
1 used in F.W. >=14.75" <=23.9" |

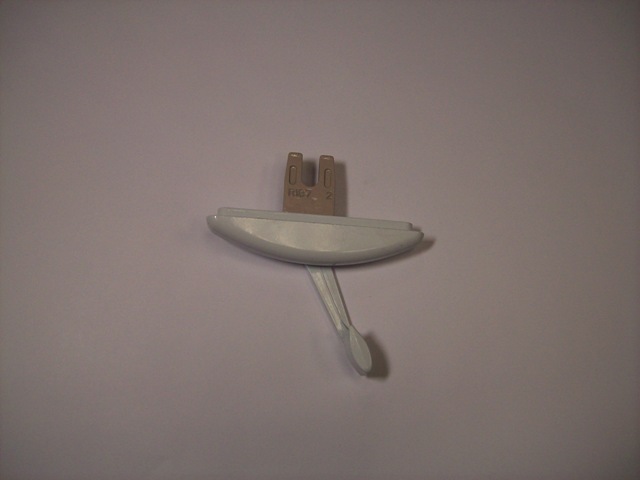

| 525.2670 | Multi-point Lock & Screws Available in White & Oak |
 |
1 used per window |

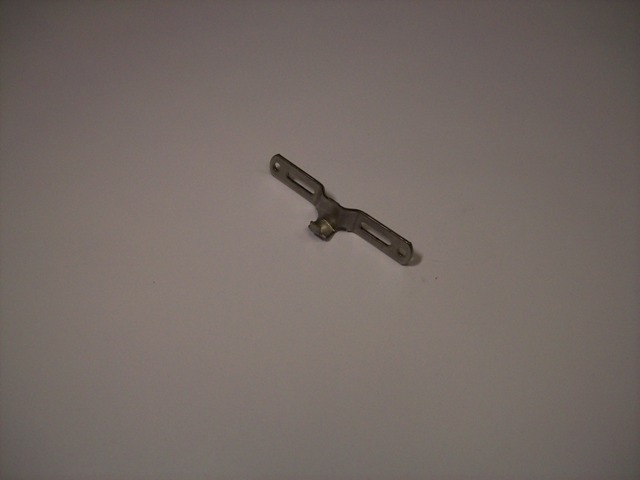

| 525.2690 | Awning Keeper |  |
1 used per window |

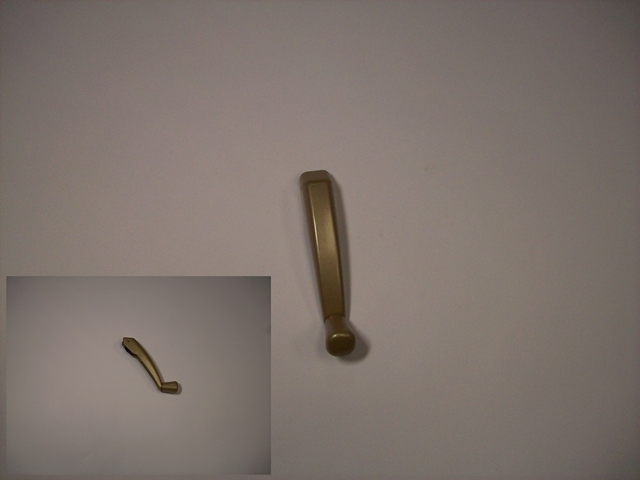

| 525.2050 | Folding Handle Available in White & Copper |
 |
1 used per window |

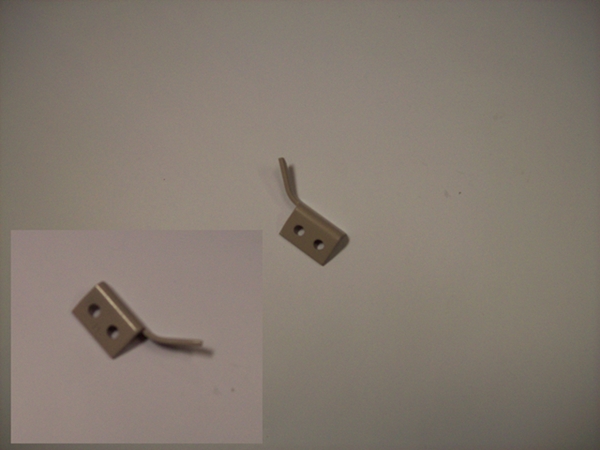

| 525.2250 (R.Hand) 525.2240 (L.Hand) |
Multi-point Keeper |  |
2 used in F.H. >=22" <=49.9" 3 used in F.H. >=50 <=69" 4 used in F.H. >=70" |

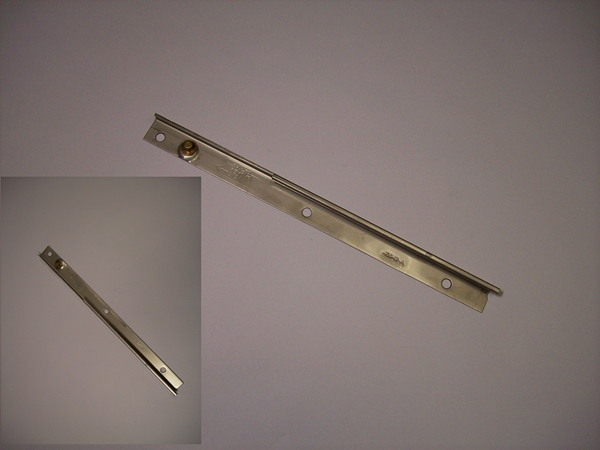

| 525.2141 (R.Hand) 525.2146 (L.Hand) |
Sash Hinge Track (Adjustable) |
 |
1 used per window |

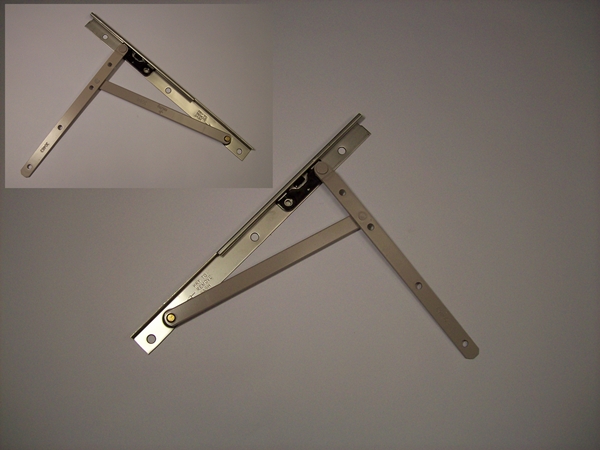

| 525.2420 (L.Hand) 525.2430 (R.Hand) |
Egress Hinge |  |
|
| 525.2600 | Contour Handle Available in White & Copper |
 |
1 used per window |

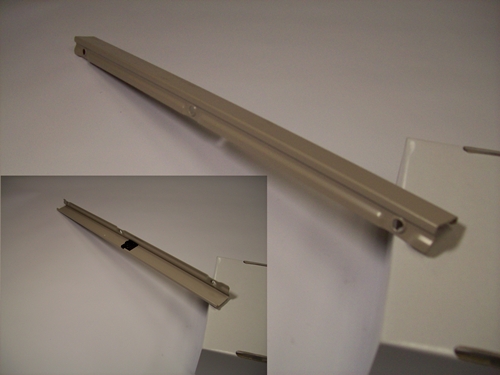

| 525.2610 | Maxim Track/Slider |  |
Used in F.W. >=24" |

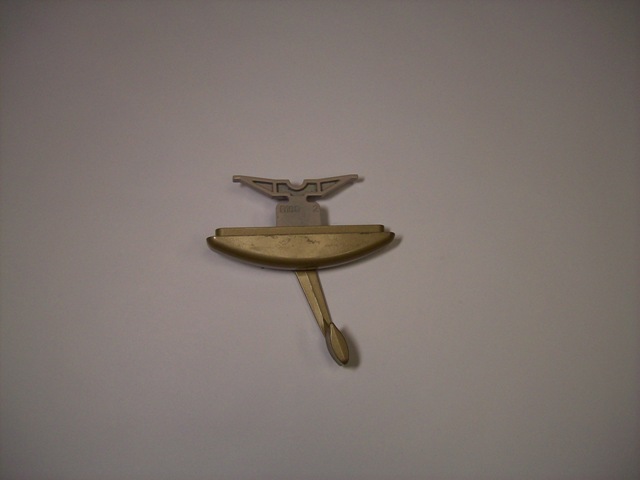

| 525.2680 | Awning Lock & Screws Available in White & Oak |
 |
1 used per window |

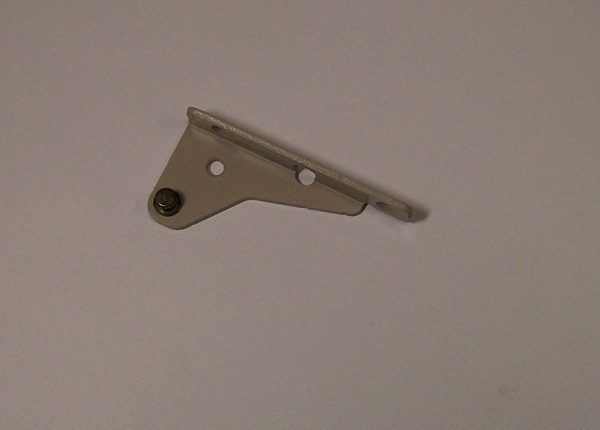

| 525.2640 (R.Hand) 525.2630 (L.Hand) |
Concealed Operator Bracket |  |
Used in F.W. >=14.75" |

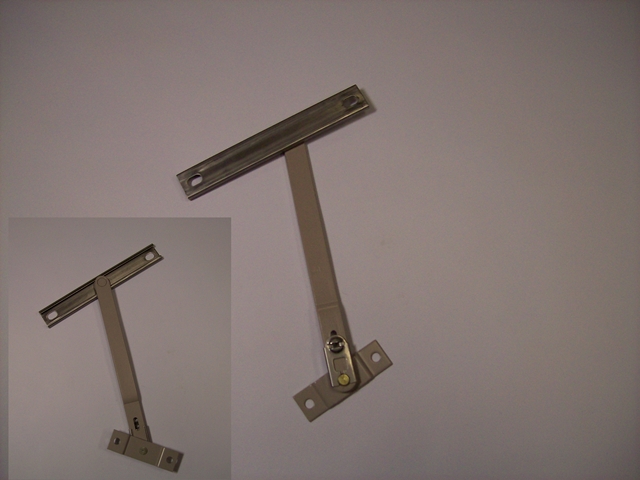

| 525.2650 | Limit Device |  |
|

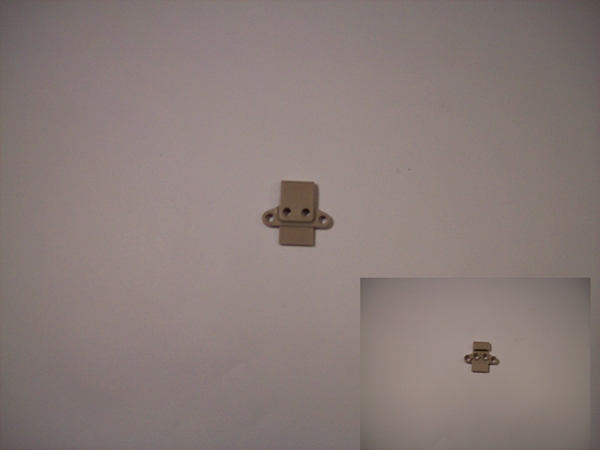

| 525.2700 | Tie Bar Guide E-Guard |  |
2 used in F.H.>=22" <=49.9" 3 used in F.H. >=50" <=69.9" 4 used in F.H. >70" |

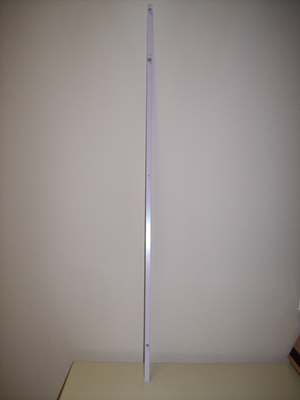

| 525.2710 (14.9") 525.2720 (18.9") 525.2730 (22.9") 525.2740 (26.9") 525.2750 (30.9") 525.2760 (34.9") 525.2770 (38.9") |
Tie Bar (2 Roller) |
 |
(14.9") used in FH >=22"<=25.9" (18.9") used in FH >=26"<=29.9" (22.9") used in FH >=30" <=33.9" (26.9") used in FH >=34"<=37.9" (30.9") used in FH >=38"<=41.9" (34.9") used in FH >=42"<=45.9" (38.9") used in FH >=46"<=49.9" |

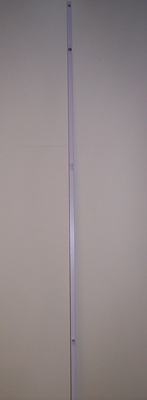

| 525.2780 (42.9") 525.2790 (46.9") 525.2800 (50.9") 525.2810 (54.9") 525.2820 (58.9") |
Tie Bar (3 Roller) |
 |
(42.9") used in FH >=50"<=53.9" (46.9") used in FH >=54"<=57.9" (50.9") used in FH >=58"<=61.9" (54.9") used in FH >=62"<=65.9" (58.9") used in FH >=66"<=69.9" |
| 525.2830 (62.9") 525.2840 (66.9") 525.2850 (70.9") |
Tie Bar (4 Roller) |
|
(62.9") used in FH >=70"<=73.9" (66.9") used in FH >=74"<=78" (70.9") used in FH >=78"<=82" |

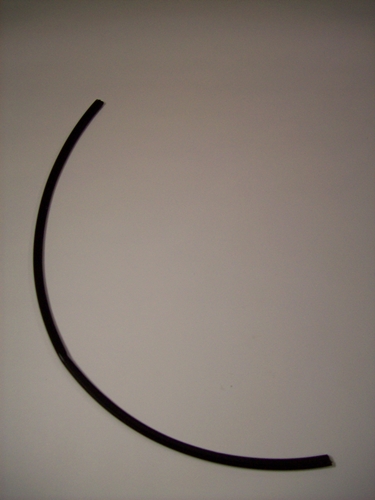

| 575.1070 | Santoprene Bulb Seal |  |
|

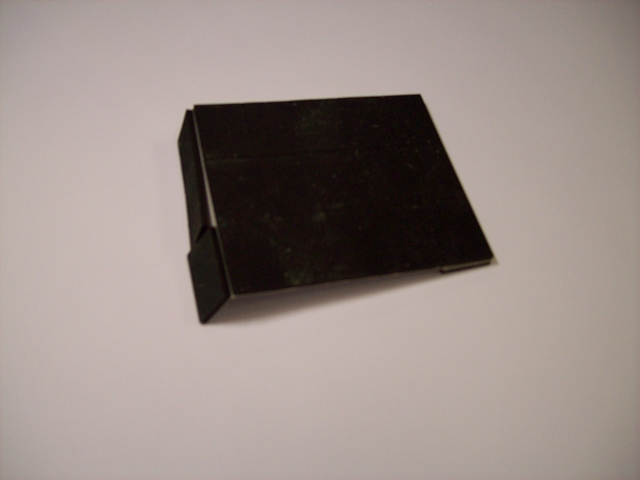

| 575.1170 | Setting Block |  |
4 used per window |
