| Awning Window Descriptions Parts in Action | |||
|
Part# |
Description |
Visual |
Usage |
| 100.5021 | Casement Frame |  |
|
| 100.5032 | Casement Sash |  |
|
| 100.5045 | Contour Glass Stop |  |
|
| 100.5420 (42") 100.5410 (48") 100.5420 (54") |
Reinforcement |  |
42" used in F.W.>=48" <54" 48" used in F.W. >=54" <60" 54" used in F.W. >=60" |
| 525.2141 (R.Hand) 525.2146 (L.Hand) |
Sash Hinge Track (Adjustable) |
 |
1 used for the R.Hand 1 used for the L.Hand |
| 525.2142 (R.Hand) 525.2147 (L.Hand) |
Sash Hinge Arm (Adjustable) |
 |
1 used for the R.Hand 1 used for the L.Hand |
| 525.2155 (L.Hand) |
Folding Handle Cover |  |
1 used per window |

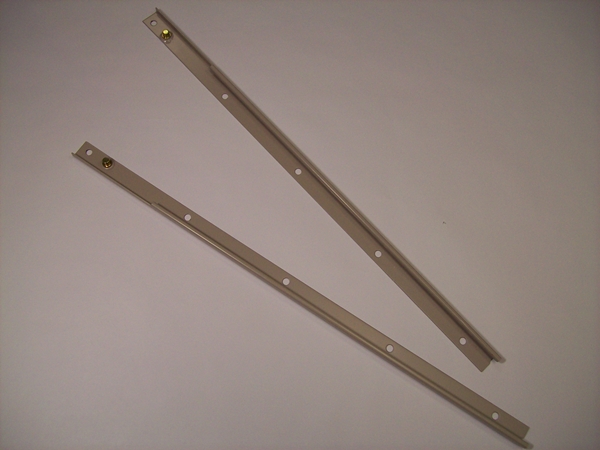

| 525.2201 (L.Hand) 525.2211 (R.Hand) |
Awning Hinge 18" Track |  |
1 used for the R.Hand 1 used for the L.Hand |

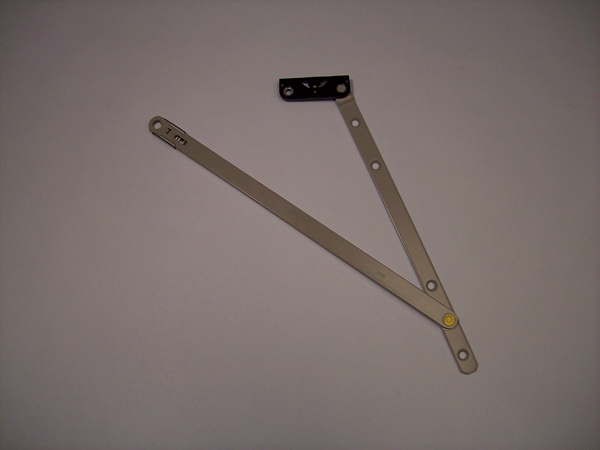

| 525.2202 (L.Hand) 525.2212 (R.Hand) |
Awning Hinge 18" Arm |  |
1 used for the R.Hand 1 used for the L.Hand |

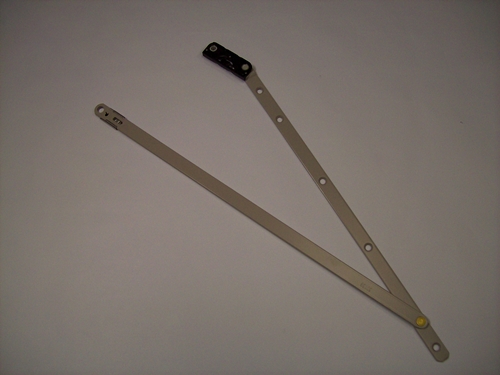

| 525.2214 (L.Hand) 525.2218 (R.Hand) |
Awning Hinge 26" Arm |  |
1 used for the R.Hand 1 used for the L.Hand |

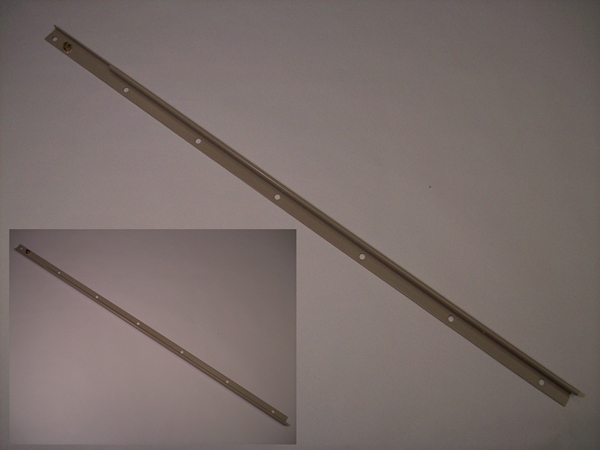

| 525.2217 (R.Hand) 525.2214 (L.Hand) |
Awning Hinge 26" Track |  |
1 used for the R.Hand 1 used for the L.Hand |

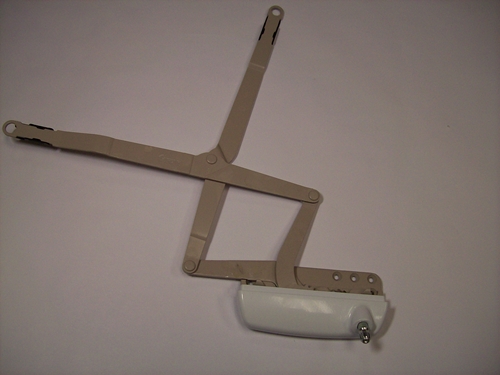

| 525.2590 | Maxim Awning Operator |  |
1 used per window |

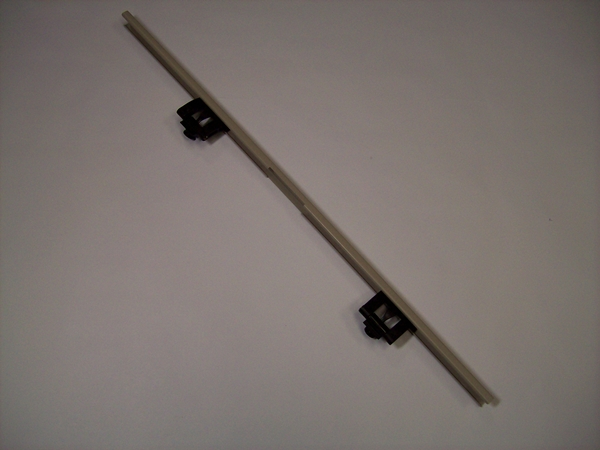

| 525.2620 | Maxim Track/Pivot Slider |  |
1 used per window |
| 525.2680 | Awning Lock & Screws Available in White & Oak |
 |
2 used per window |
| 525.2690 | Awning Keeper |  |
2 used per window |
| 575.1070 | Santoprene Bulb Seal |  |
|
| 575.1170 | Setting Block |  |
4 used in F.W. <=36" 6 used in F.W.>36" |
| 940.1007 | Label-a-peel Northstar Logo |  |
|
